JOYGOAL shanghai factory price high quality automatic spout pouch filling and sealing machine

FOB Reference Price:Get Latest Price
$5,000.00 - $15,000.00 / Sets | 1 Set/Sets Stand up pouch filling and sealing machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Packaging Type:
Bags, Barrel, Bottles, Cans, Capsule, Cartons, Case, Pouch, Stand-up Pouch, Stand up pouch filling and sealing machine
Packaging Material:
Glass, Metal, Paper, Plastic, Wood, Stand up pouch filling and sealing machine
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles, Stand up pouch filling and sealing machine
Automatic Grade:
Automatic
Driven Type:
Pneumatic
Voltage:
AC 220V/380V
Power:
1.5KW
Place of Origin:
Shanghai, China
Brand Name:
JOYGOAL
Model Number:
ZLD-6A
Dimension(L*W*H):
2700*2000*2400 MM
Weight:
1800 KG
Certification:
CE
Name:
automatic spout pouch filling and sealing machine
Packing speed:
6000 pouches/hour
Filling volume:
5-3000ml(can be adjusted)
Power source:
Custom build
Air pressure:
0.5-0.7 MPA
Air comsuption:
0.65 m3/min
For:
Stand up pouch filling and sealing machine
Warranty:
1 Year
Filling material:
Flowing Liquid
Product name:
automatic spout pouch filling and sealing machine
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
30 Set/Sets per Month Stand up pouch filling and sealing machine
Packaging & Delivery
Packaging Details
Strong wooden case
Port
Shanghai port
Lead Time :
30 working days
Video Description



Produced by

ZLD-6A  Automatic pouch bag Filling and Capping Machine

Thank you for browsing our ZLD-6A Automatic Spout Pouch Filling and Capping Machine. Please contact us and send an inquiry if you need more details. For all the machines we sell, we offer custom machine service, technical support and after service.



Product Description

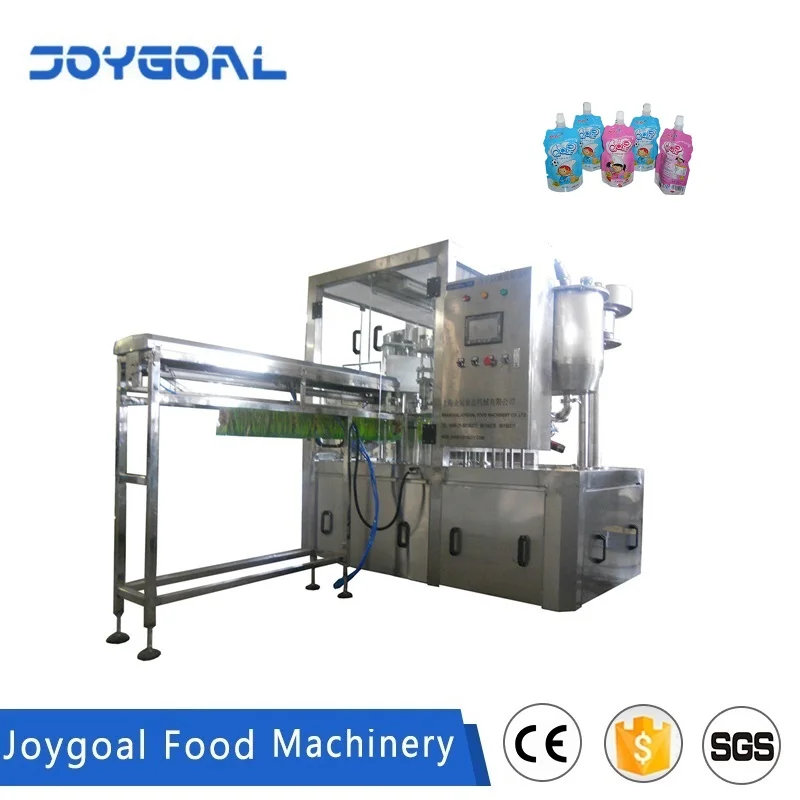

ZLD-6A Automatic Spout Pouch Filling and Capping Machine

  • Widely used for a variety of products, such as jelly, milk, butter, fruit juices, paste, chemical liquid, water and so on.
  • High reliability, convenient operation, wide applicability, high performance.
  • Import control elements, Schneider, Mitsubishi, Ormon, Siemens, making the system more stable and reliable.
  • Contact us to get more details.



Working process of ZLD-6A Automatic Spout Pouch Filling and Capping Machine

  • Pouch loading
  • Printing  -  printing machine required, optional feature
  • No pouch detection
  • Vacuum - optional feature
  • Filling  -  adopt with leak-proof nozzles
  • Nitrogen flushing - optional feature
  • Spout cleaning

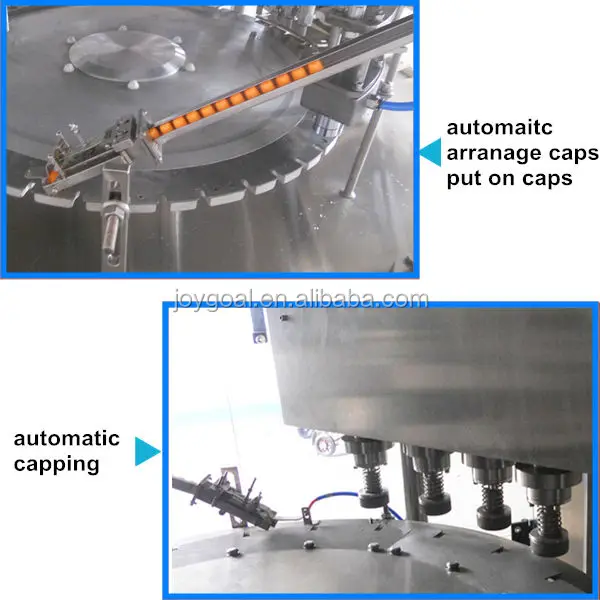

  • Feeding and inserting cap
  • No cap detection
  • Capping
  • Discharging
  • Transport - conveyor belt required, optional feature



More optional features

  • Caps feeder to feed caps to ZLD-6A automatic
  • Whole machine made of stainless steel
  • Air clean system
  • Open dust cover door detector to keep production safe
  • CIP system fit for ZLD-6A
  • Conveyor belt to transport finished pouches
  • Printing machine to print date or lot numbers
  • Air compressor to supply compressed air for ZLD-6A running
  • Stainless steel pump to feed product to ZLD-6A automaic
  • More spare parts
  • Nitrogen generator to supply nitrogen for ZLD-6A



Watch video by click









Support

  • Detailed user's manual
  • Detailed video of showing machine installation and operation
  • Detailed pictures of showing how to adjust machine's speed, how to adjust filling volume, how to adjust strength of vibrating, how to adjust strength of capping, how to maintance
  • After sale response time less than 6 hours
  • ......

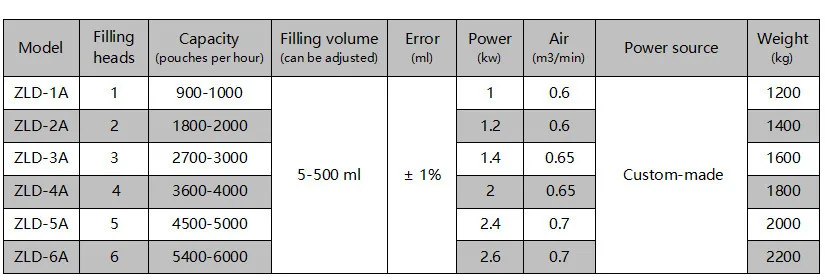

Technical parmaters of ZLD-6A Automatic Spout Pouch Filling and Capping Machine





Particular advantages of ZLD-6A Automatic Spout Pouch Filling and Capping Machine

  • Factory and manufacturer directly sales with competive price
  • More than 8 years experience of design, manufacturing

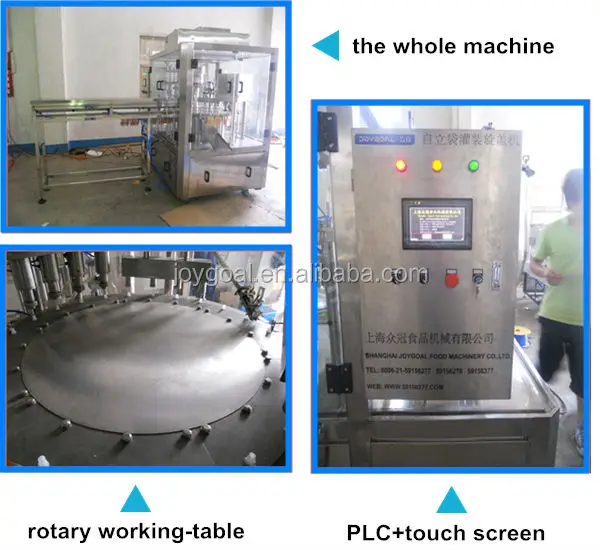

  • Touch screen in English and Chinese languages
  • Two emergency stop buttons to keep production safe
  • Detections: no pouch no filling, no cap stop, vibrator run automatic
  • Dust cover, ultraviolet sterilization lamp
  • Professional designers and workers to serve you
  • This machine with a strict inspection before out of storage
  • Food grade 304# stainless steel is used in our spout pouch filling capping machine

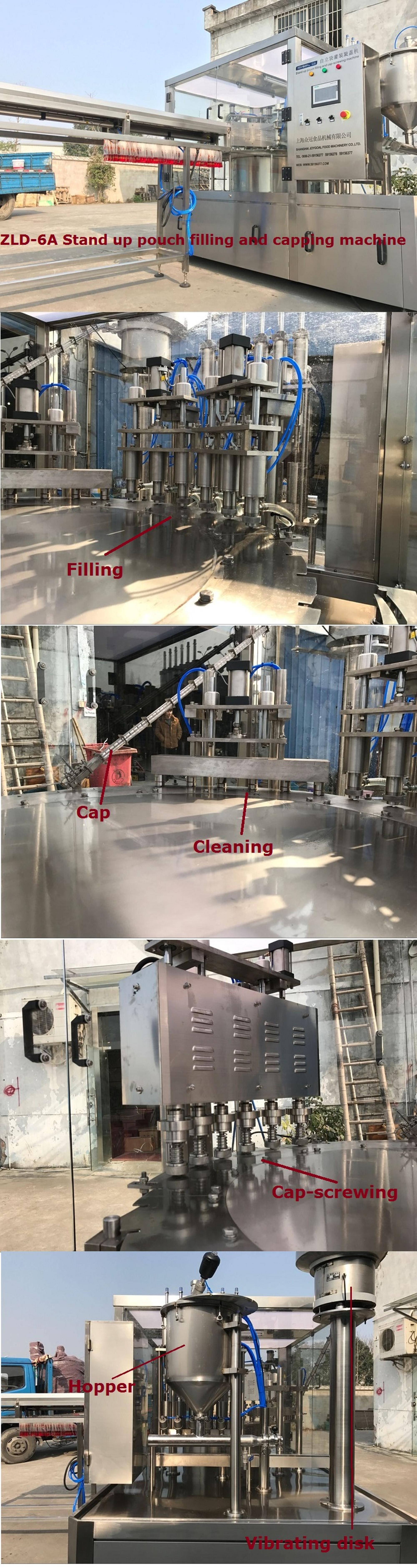

Photos of ZLD-6A Automatic Spout Pouch Filling and Capping Machine

















Packaging & Shipping





Company Information



Shanghai Joygoal Food Machinery Co.,Ltd is a company devote to the field of food machiney which integrates reaearch, development, manufacture, installation and maintenance. We have advanced equipments, rich experience, high-qualified scientific researchers and professional staff for the after-sales services.

Following the developing markets, our technology is also innovative. We are always in the spirit of "continuous improvement and excellence" and with the superior quality products, favorable price and good after-sale services to win every customer's trust. Sincerely, we are willing to cooperate and develop together with you.



Related Products

Spout pouch filling capping machine

Coffee capsule filling machine

Cup filling sealing machine
Labeling machine
Vertical form fill seal machine
  • Liquid form fill seal machine
  • Powder form fill seal machine
  • Granule form fill seal machine


FAQ

Q1:Are you factory or trading company?

A: We are factory and manufacture.



Q2: Where is your factory located? How can I visit your factory?

A: We are located in Shanghai, you can fly to Shanghai Hongqiao airport or Pudong airport. Wecan pick you up from the airport or your hotel.



Welcome to visit us!



Q3:How to place my order?

A: Just contact us via TraderManager, E-mail, Skype or telephone to confirm the product, make the deposit then we will start to manufacture.



Q4 : What is the payment term?

A: 30% T/T deposit and 70% T/T balance payment before shipping.



Q5:How long is the delivery time?

A: About 35- 40 working days.
